Why the Water Stain Isn't Where the Leak Is: How Roof Leaks Travel

How water moves inside a roof

Picture the layers: covering (tile, shingle or metal), underlayment, decking, then the framing and attic below. When the covering lets water through — a cracked tile, a lifted shingle, a failed flashing — the water lands on the underlayment. If the underlayment is intact, it runs downslope and out at the eave and you never know. If the underlayment has a gap or a nail hole or has simply aged out, the water reaches the deck.

On the deck, water follows the slope and clings to the surface by surface tension. It travels down the sheathing until it meets a seam between plywood sheets, a nail that has punched through, or a rafter. Then it follows the rafter. It can run along a truss chord for several feet before it drips onto the insulation, soaks through, and finally shows on the drywall at the lowest point it found.

Stain location tells you where water landed. It rarely tells you where it entered.

The seven most common leak sources

• Pipe boots. The rubber collars around plumbing vents crack in Florida sun, usually within eight to twelve years. This is the single most common leak we repair.
• Flashing at walls and chimneys. Where the roof meets a vertical surface, step flashing and counterflashing have to be layered correctly. Sealant caulked over a bad flashing detail fails within a season.
• Valleys. Two slopes funnel water into one channel. Debris, aged underlayment, or tiles cut too tight to the valley center all cause problems here.

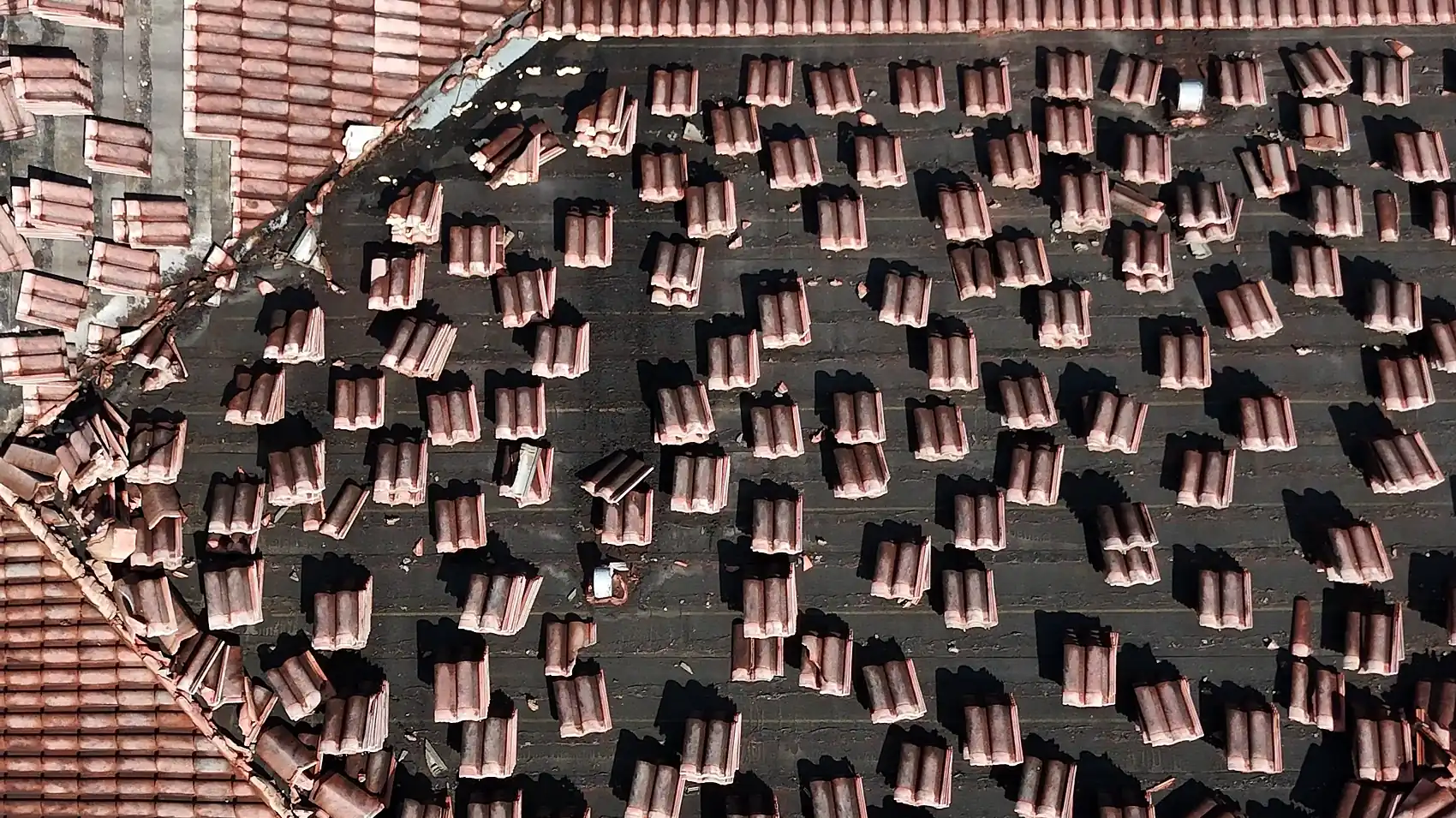

• Broken or slipped tile exposing aged underlayment. On tile roofs the underlayment does the waterproofing, and exposed underlayment degrades quickly in UV.
• Skylights. The curb flashing and the skylight's own seals both age.
• Fastener back-out. On older shingle and metal roofs, nails or screws work upward with thermal cycling, lifting the covering and opening a hole.
• Drip edge and eave detail. Missing or short drip edge lets wind-driven rain wick backward under the first course, staining fascia and the ceiling near exterior walls.

How a real diagnosis works

We start on the roof, directly upslope from the stain and to both sides, because water can travel laterally along a truss. We check every penetration and transition in that zone. Then we go into the attic with a flashlight during or shortly after rain when possible, looking for the wet path on the underside of the decking — a dark streak on plywood is a map. We follow it uphill to where it starts. That is the entry point, and we photograph it before we repair it.

If it is dry, a controlled water test — running a hose on one suspected area at a time while someone watches from the attic — isolates the source without guessing.

Why "just seal it" fails

The fastest, cheapest response to a leak is a tube of sealant on whatever looks suspicious near the stain. It fails for two reasons: the actual entry point was probably not sealed, and sealant on top of a flashing defect lasts a season or two in this climate before it cracks. A repair that lasts replaces or re-flashes the failed detail.

What to do the day you see a stain

Photograph the stain and note the date and the last rain. Put a container under any active drip. Do not cut into the ceiling — the drywall is holding water back and cutting it can release a soaked cavity onto the floor. Call for an inspection. The sooner the entry point is closed, the less insulation and decking you replace.
